SKU: 107013
Manufacturer: JD Squared, Inc.
$2,000.00

Round Tube Stabilizer – 3"

Gantry-Mounted Automatic Stabilizer for XR6 & XR12 CNC Rotary Cutters

Overview

The Round Tube Stabilizer is a precision gantry-mounted attachment designed to provide superior support and stability during the cutting of round tubes and pipes. This automatic stabilizer system ensures consistent, high-quality cuts while protecting your workpiece from damage during operation.

Key Specifications

Maximum Capacity Up to 3" O.D. round tubes
Mounting Gantry-mounted configuration
Operation Automatic retraction system
Material Contact Transfer ball system
Compatibility XR6 and XR12 CNC Rotary Cutters

Functionality & Features

Automatic Retraction System

The Round Tube Stabilizer features an intelligent automatic retraction system that protects your workpiece throughout the cutting process:

  • During Cutting: Transfer balls engage with the workpiece, providing firm, consistent support that prevents vibration and ensures precision cuts
  • Between Cuts: The system automatically retracts the transfer balls away from the workpiece during rapid positioning movements
  • Scratch Prevention: By retracting during rapid moves, the stabilizer minimizes contact with the finished surface, preventing scratches and maintaining workpiece quality

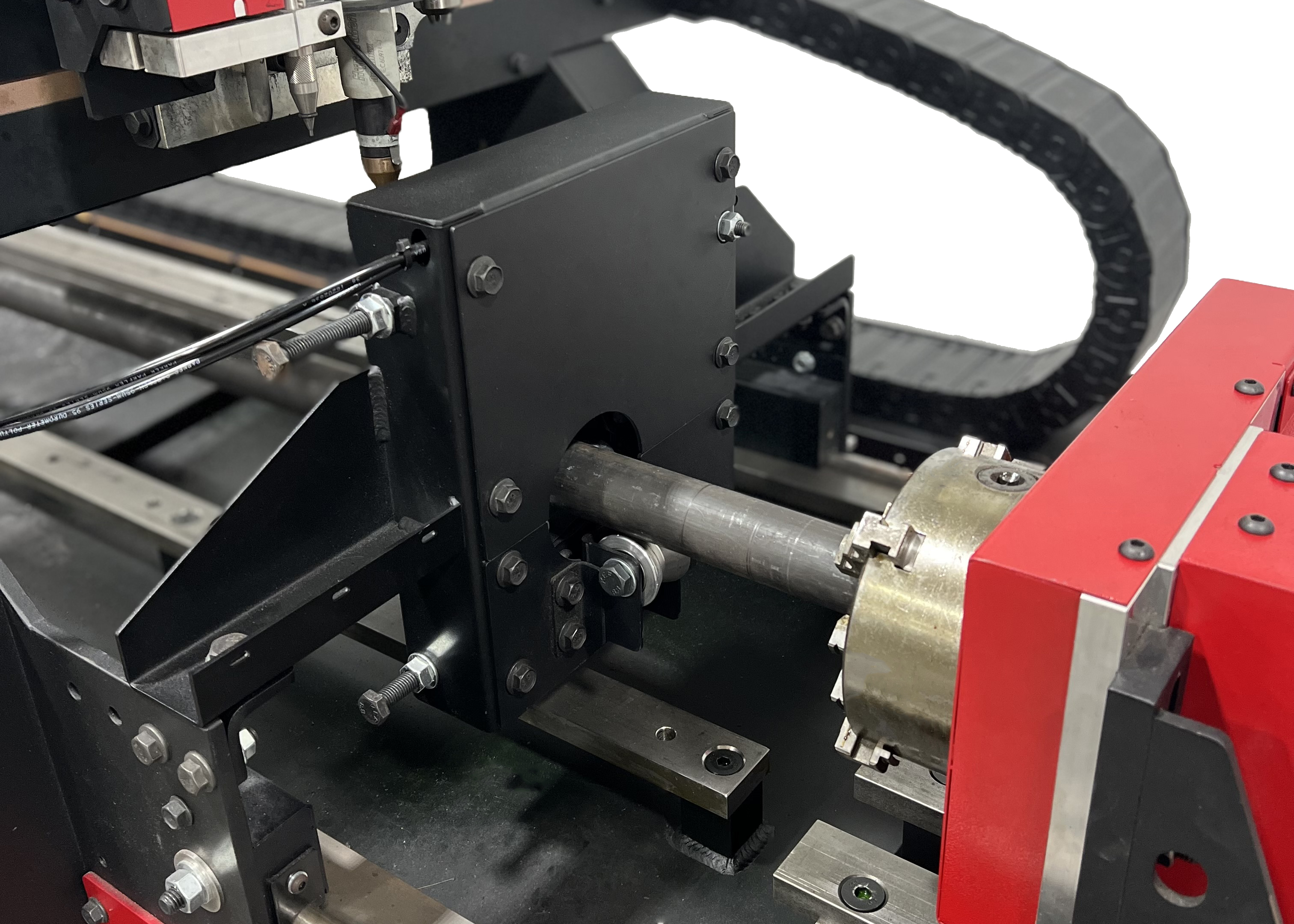

Round Tube Stabilizer – During Operation

During Operation

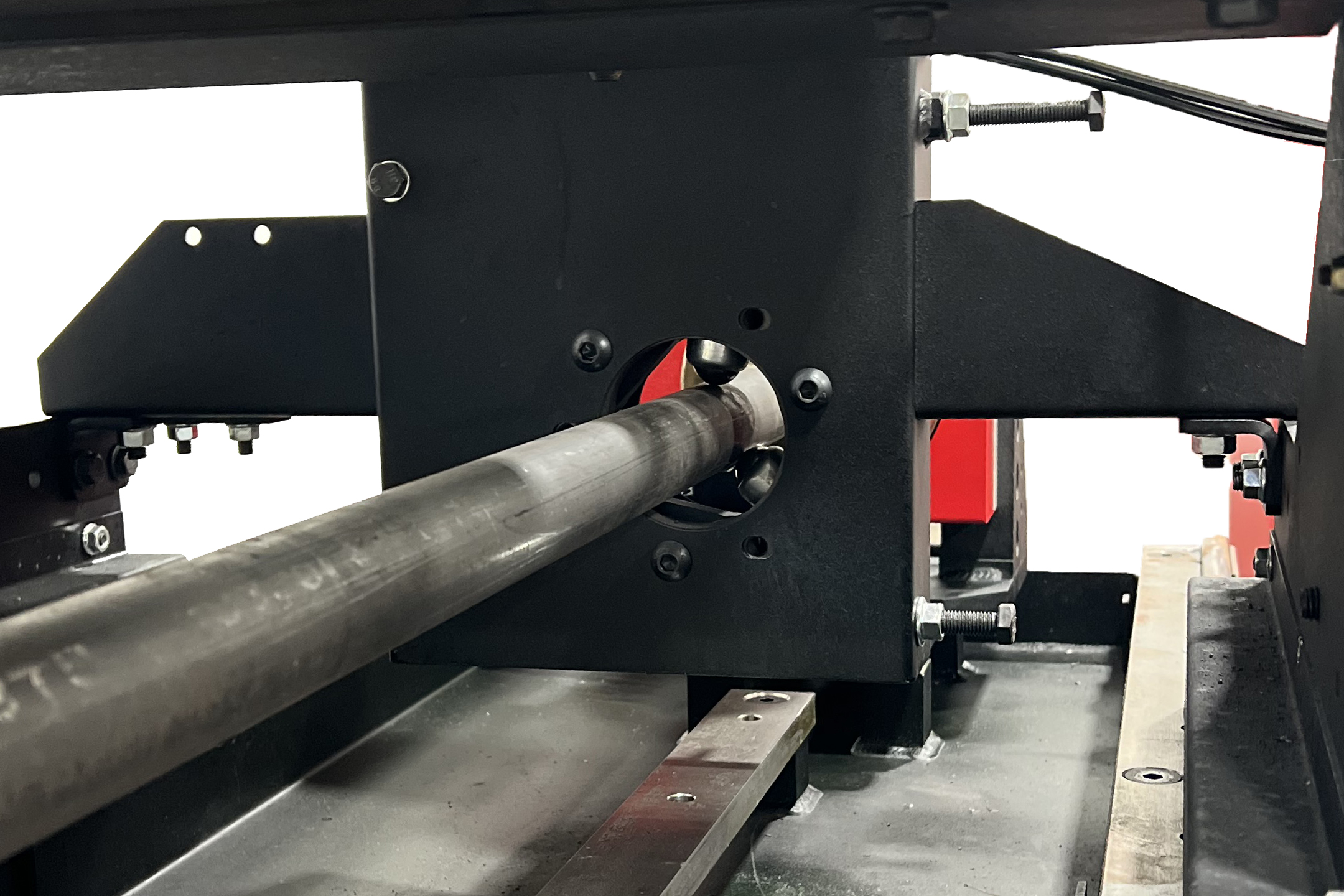

Transfer Ball Configuration

Transfer Ball Configuration

Quick Changeover

The Square Stabilizer shares the same center height as the Round Tube Stabilizer, allowing you to swap between the two without readjusting the chuck position.

An adjustable bump stop on the stabilizer ensures consistent positioning every time it's installed.

Tip: Keeping both stabilizers at the same center height helps speed up changeovers and keeps setups repeatable.

Benefits

  • Enhanced cutting precision through stable workpiece support
  • Reduced vibration during plasma cutting operations
  • Protected workpiece finish with automatic retraction
  • Improved cut quality and consistency
  • Extended tool life through reduced vibration
  • Faster production with automated operation

Note: The Round Tube Stabilizer operates identically on both XR6 and XR12 machines. While the physical mounting may differ slightly due to machine size variations, the functionality, capacity, and benefits remain consistent across both platforms.

When to Use the Round Tube Stabilizer

  • Cutting round tubes and pipes up to 3" O.D.
  • Plasma cutting operations requiring precision
  • Projects where surface finish quality is critical
  • High-volume production runs requiring consistency
  • Any application where tube stability during rotation is essential

Image Gallery

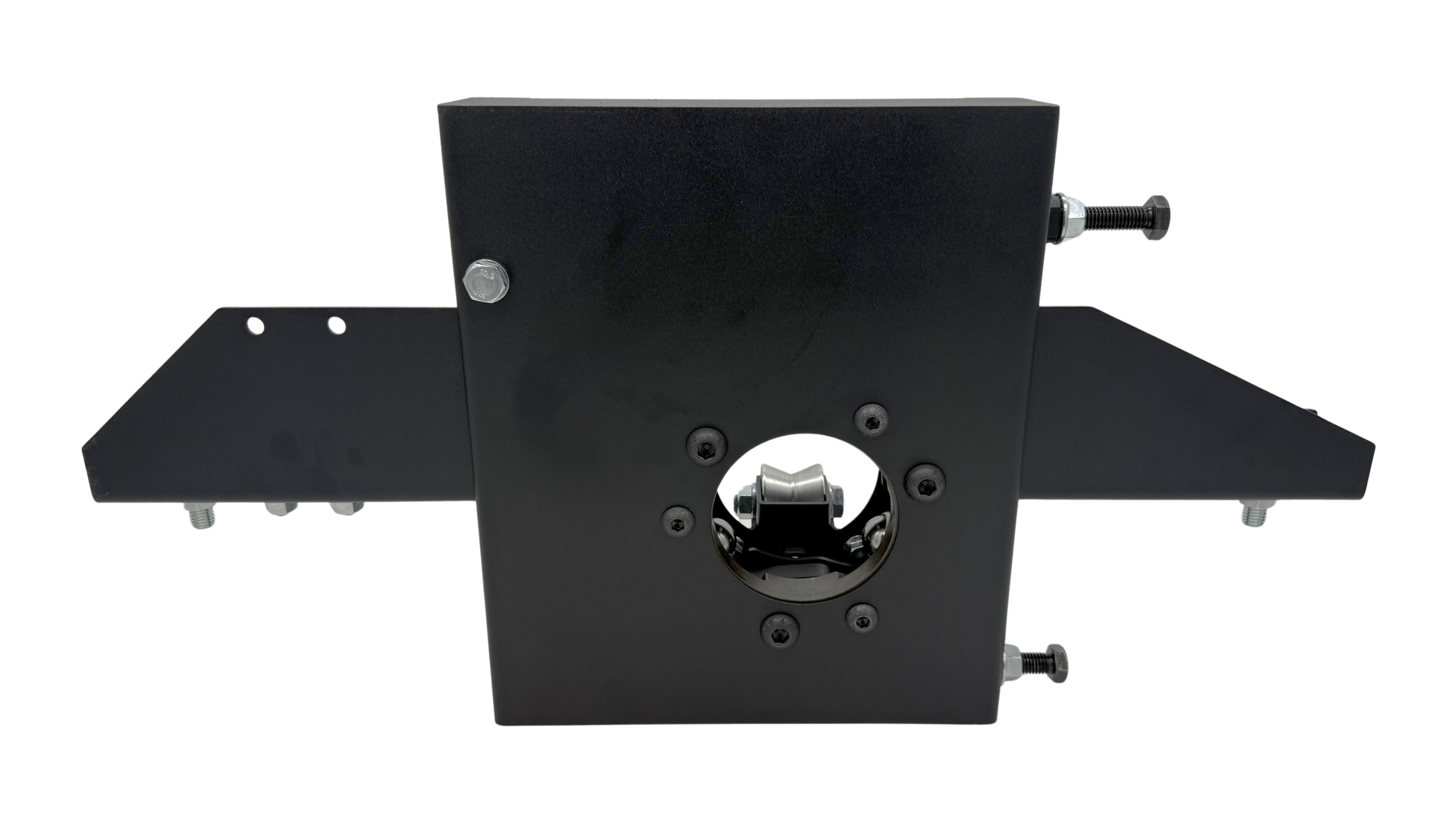

XR6 Round Tube Stabilizer

XR6 Round Tube Stabilizer

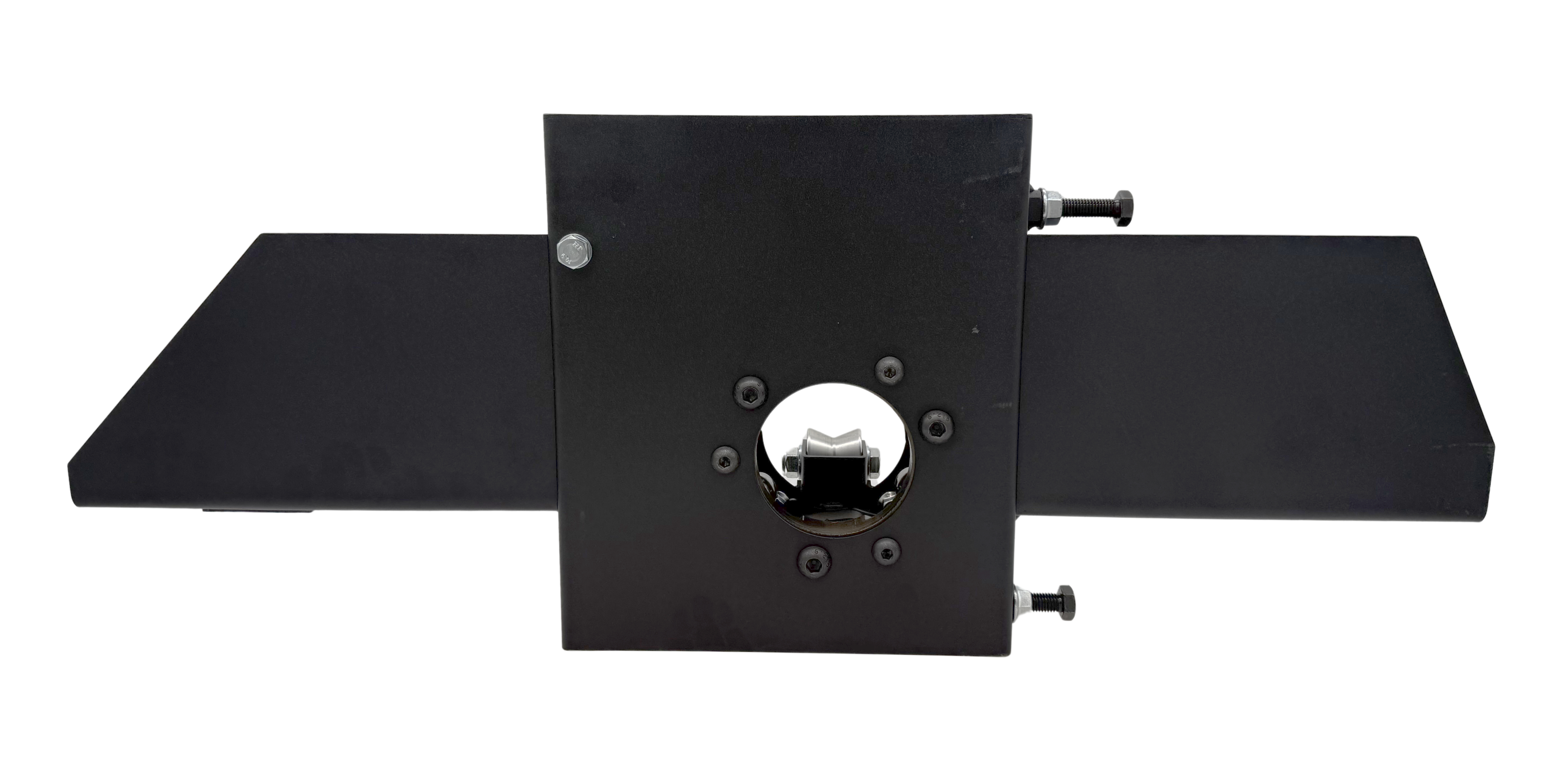

XR12 Round Tube Stabilizer

XR12 Round Tube Stabilizer

Questions About the Round Tube Stabilizer?

Our team can help confirm fitment and the best setup for your XR6 or XR12.

Contact Sales
