SKU: 112401
Manufacturer: JD Squared, Inc.
$1,200.00

Universal Jig Plate System

Chuck Mounted Fixturing System on XR6 & XR12 CNC Rotary Cutters

Overview

The Universal Jig Plate System enables operators to fixture and cut structural shapes that cannot be held directly in a standard square jaw chuck — including angle iron and non-standard rectangular sections.

The jig plate mounts to the machine's 4-jaw chuck via a machined 4-sided arbor, and uses a combination of precision positioning blocks and an engraved alignment grid to locate workpieces at an exact, known distance from the center of rotation.

Key Specifications

Compatibility XR6 and XR12 CNC Rotary Cutters
Mounting 4-side machined arbor for 4-jaw chuck
Hole Pattern 12mm drilled and tapped
Grid System 1" engraved alignment squares
Block Widths ⅞", 1", 1-¼", 1-½" (various configurations available)
Fastener Types Hex bolt (19mm / ¾"), socket head cap screw, set screw

Functionality & Features

Alignment Grid System

The face of the jig plate features an engraved grid of 1" squares that serves as a positioning reference. These grid lines allow operators to place positioning blocks at precise, known distances from the center of rotation (the arbor centerline).

Because the Cam-A-Lot software that generates cutting code requires the center of rotation to be defined for each workpiece profile, the grid provides a reliable way to measure and verify each fixture configuration during setup.

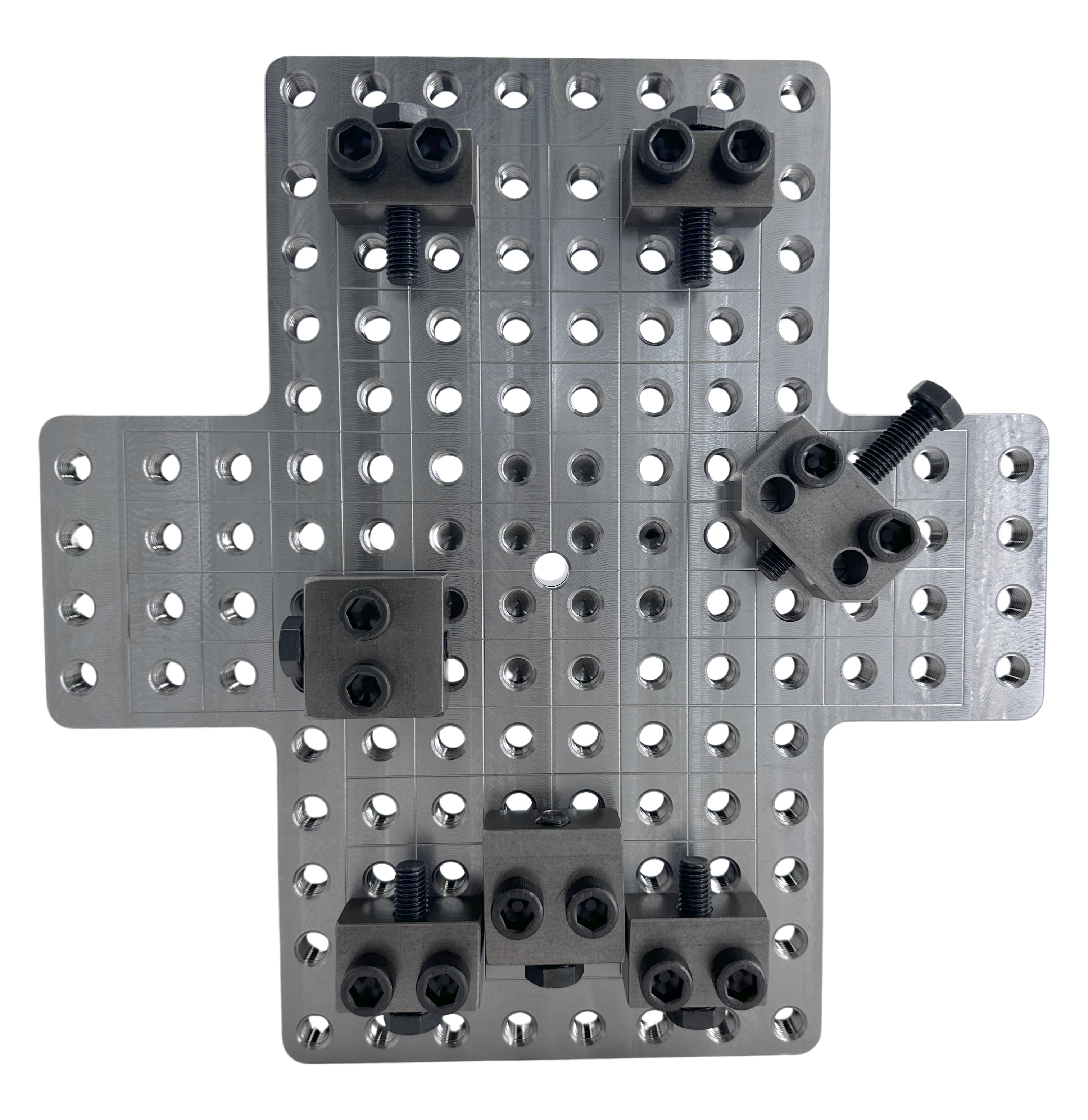

Jig Plate Overview

Jig Plate Overview

Positioning Blocks

Blocks are available in varying widths — ⅞", 1", 1-¼", and 1-½" — to accommodate a wide range of workpiece geometries.

Each block has an offset mounting hole: one face is ½" from the bolt center, while the opposite face provides a different offset depending on the block width. This allows each block to be flipped end-for-end to achieve half-inch positioning increments using the grid as a reference.

Example: With a 1-¼" wide block, one face sits ½" from the bolt center and the other sits ¾" from center. This means the same block can position a workpiece face at either a full-inch grid line or a half-inch point between grid lines, simply by flipping it around.

Blocks come in two types: clamping blocks (drilled and tapped to accept a fastener for securing the workpiece) and backstop blocks (plain faces used only as positioning references with no threaded hole).

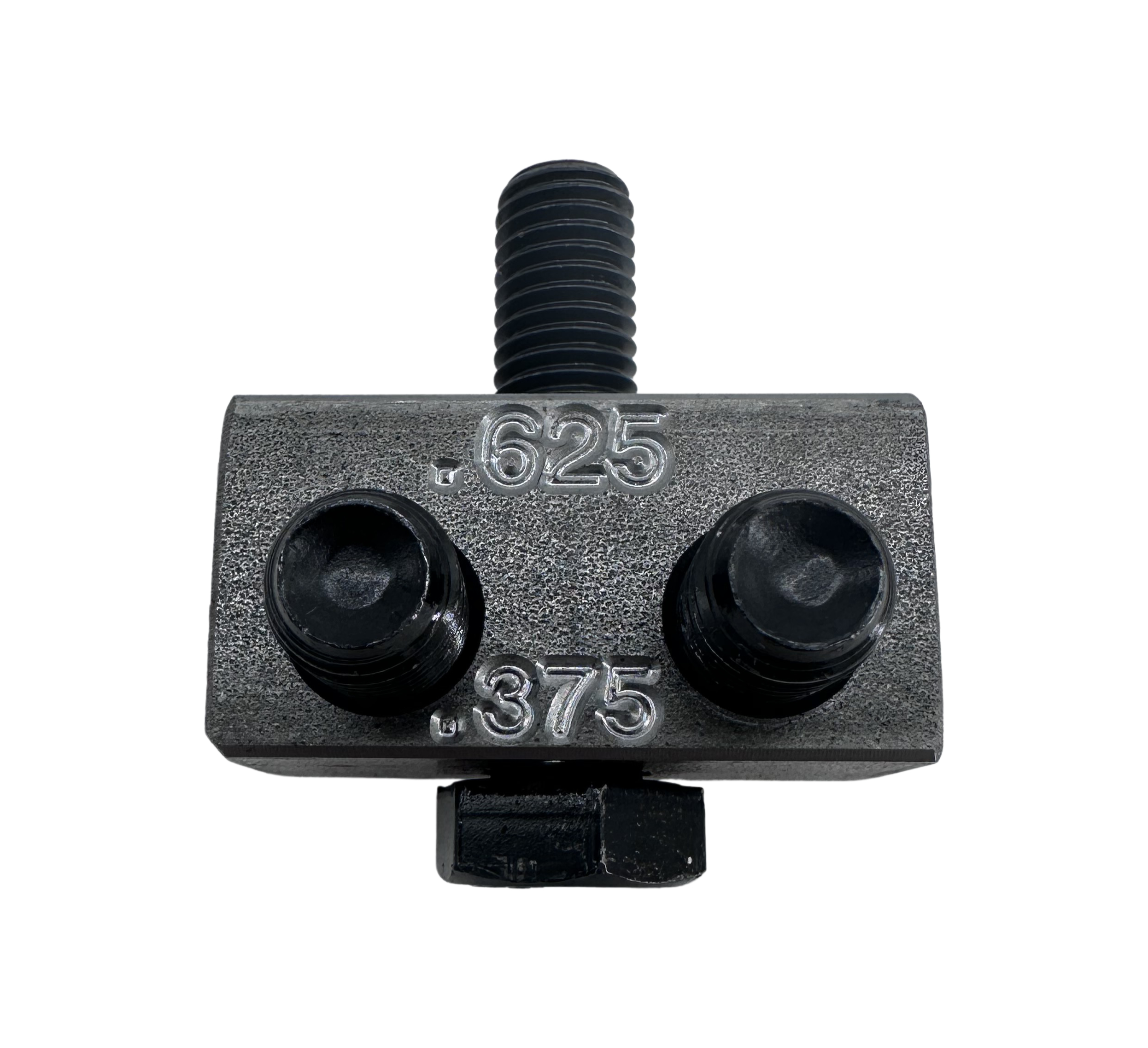

Positioning Blocks

Positioning Blocks

Positioning Blocks (Alternate View)

Positioning Blocks (Alternate View)

Fastener Options

Change the fastener depending on clearance requirements:

  • Hex Bolt (19mm / ¾"): The preferred option for speed and ease of use. A standard wrench allows rapid tightening during setup and workpiece changes. The block's offset hole is specifically designed to provide clearance for the hex head — always orient the block so the threaded hole is farther from the working surface.
  • Socket Head Cap Screw: Provides a lower profile where vertical clearance above the block is limited.
  • Set Screw: The most compact option for tight-clearance situations where any bolt head protrusion would interfere with the workpiece or its rotation path.

Application

Setup Principles

Setting up a jig plate fixture begins with determining where the workpiece needs to sit relative to the center of rotation. The operator divides the relevant workpiece dimension by two to find the offset from center, then uses the engraved grid to position backstop blocks at that distance. Clamping blocks are then placed on the opposite side of the workpiece to lock it in position.

Workpiece reference surfaces can be either outside or inside faces, depending on the shape being cut. For square and rectangular tubing, blocks typically reference the outside surfaces, with clamping blocks pressing inward. For channel sections, the reference is typically taken from the inside of a flange and the inside of the web — this approach works with the ring adapter system and is covered in detail in the companion documentation.

Note: When tightening fasteners against a workpiece, a thin piece of flat metal (approximately ⅛" or 3mm thick) can be placed between the fastener and the workpiece surface to prevent marring or surface damage.

Example Configurations

4" × 6" Rectangular Tubing: Position backstop blocks at 2" from center on the 4" sides (4 ÷ 2 = 2) and 3" from center on the 6" sides (6 ÷ 2 = 3), aligning block edges directly on the corresponding grid lines. On the clamping side, a ⅞" block provides an intentional ⅛" extra clearance to accommodate weld seam bulge — a common characteristic of welded tubing that prevents it from sitting perfectly flush. This block can also be flipped and used as a conventional ½" offset block for even-inch dimensions.

1-½" Angle Iron: Using 1-¼" wide blocks with the ¾" offset facing the center of the jig plate positions the backstop faces exactly ¾" from center (1-½" ÷ 2 = ¾"). A standard block on the outside provides the clamping point, and a spare block can be used as a spacer between the hex bolt and workpiece to prevent marring.

3" Rectangular Tubing: Position blocks with the offset flipped so the working edge falls at the 1-½" mark — the center of a 1" grid square (3 ÷ 2 = 1-½"). This demonstrates how flipping blocks provides precise half-inch positioning increments. An inside clamping block with a threaded fastener secures the workpiece against the backstop blocks.

Software Integration

When creating cutting programs in Cam-A-Lot, the operator defines the center of rotation relative to the workpiece geometry. Because the jig plate grid provides a precise, measurable reference system, the offset values entered in the software correspond directly to the physical block positions on the plate.

This ensures the cutting path accurately follows the workpiece profile on all sides during rotation.

Image Gallery

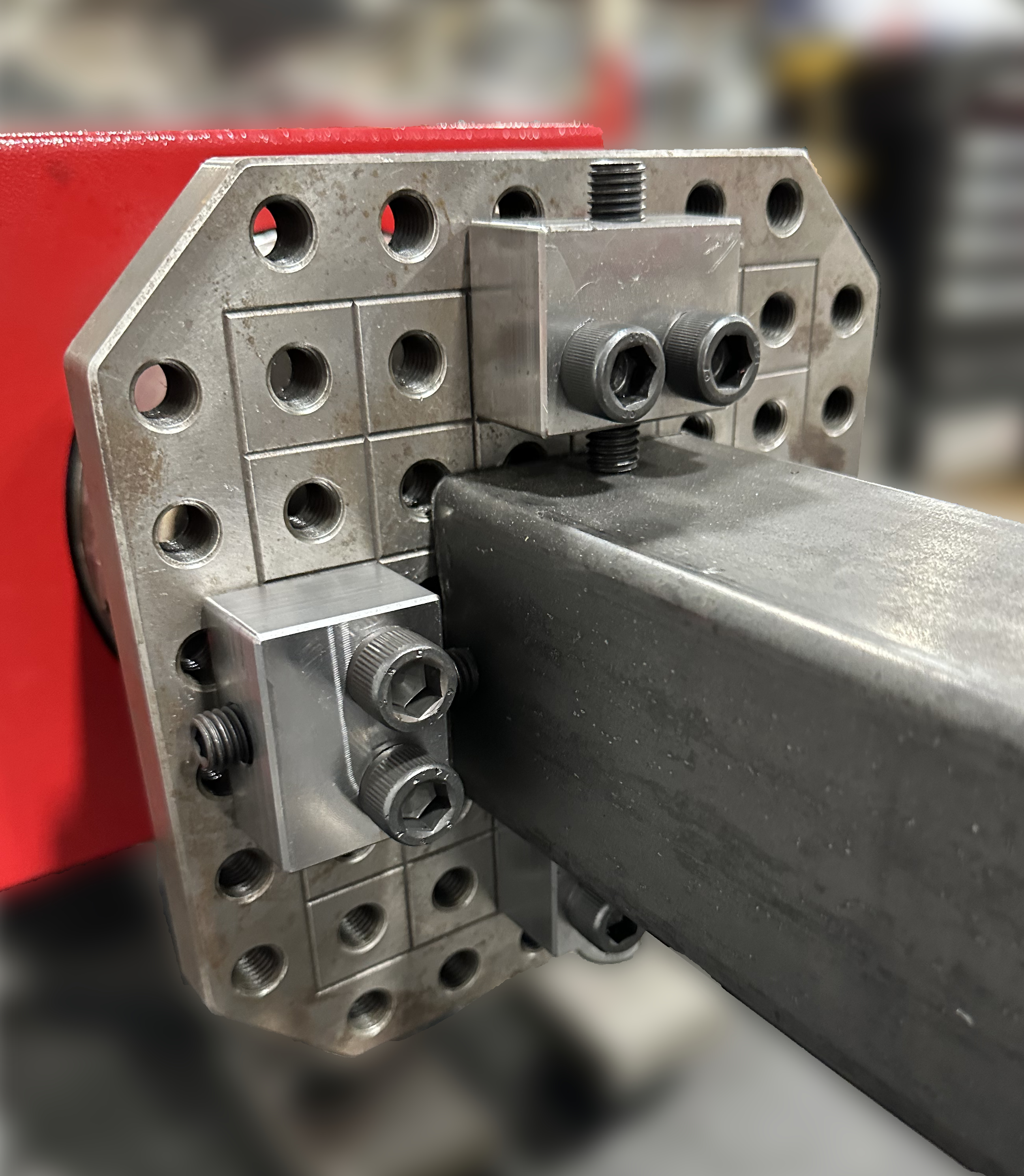

Square and Rectangular Tubing Setup

Square and Rectangular Tubing Setup

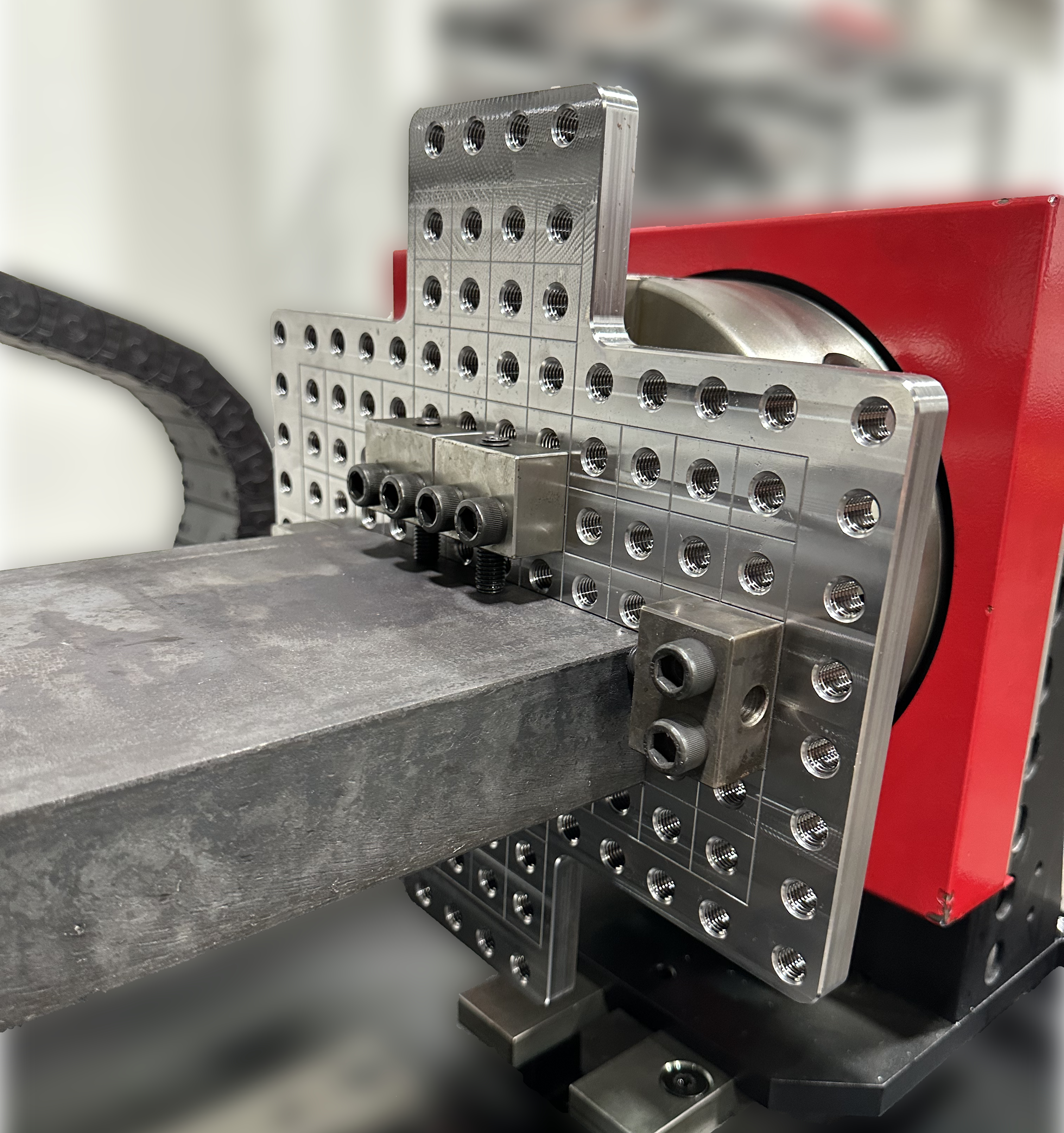

Square and Rectangular Tubing Setup (Alternate View)

Square and Rectangular Tubing Setup (Alternate View)

Questions About the Universal Jig Plate System?

Our team can help confirm the right setup for your workpiece profile and your XR6 or XR12.

Contact Sales
