SKU: 107010
Manufacturer: JD Squared, Inc.
$2,000.00

Square Stabilizer & Gauge Kit – 4"

Gantry-Mounted Adjustable Stabilizer for XR6 & XR12 CNC Rotary Cutters

Overview

The 4" Square Stabilizer is a versatile gantry-mounted attachment designed for cutting square tubing, rectangular tubing, and angle iron. This infinitely adjustable stabilizer handles material from ½" up to 4" and shares the same center height as the Round Tube Stabilizer, allowing for quick changeover between stabilizer types without readjusting the chuck height.

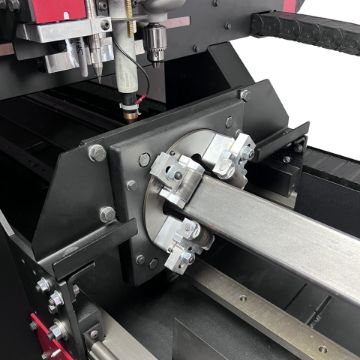

Square Stabilizer & Gauge Kit – 4 inch

Square Stabilizer & Gauge Kit – 4"

Key Specifications

Maximum Capacity 4" × 4" working envelope
Minimum Size ½" × ½"
Adjustment Infinitely adjustable with included gauge set
Roller System 4 rollers (2 fixed, 2 floating)
Angle Iron Capacity Up to 4" × 4" with adapter rollers
Compatibility XR6 and XR12 CNC Rotary Cutters

Functionality & Features

Adjustable Roller System

The stabilizer uses four precision rollers that can be positioned anywhere within the working envelope. Each roller has two mounting positions:

  • Inner position: for ½" to 2" material
  • Outer position: for 2" to 4" material

The included gauge set allows for quick, repeatable setup to any size within the range.

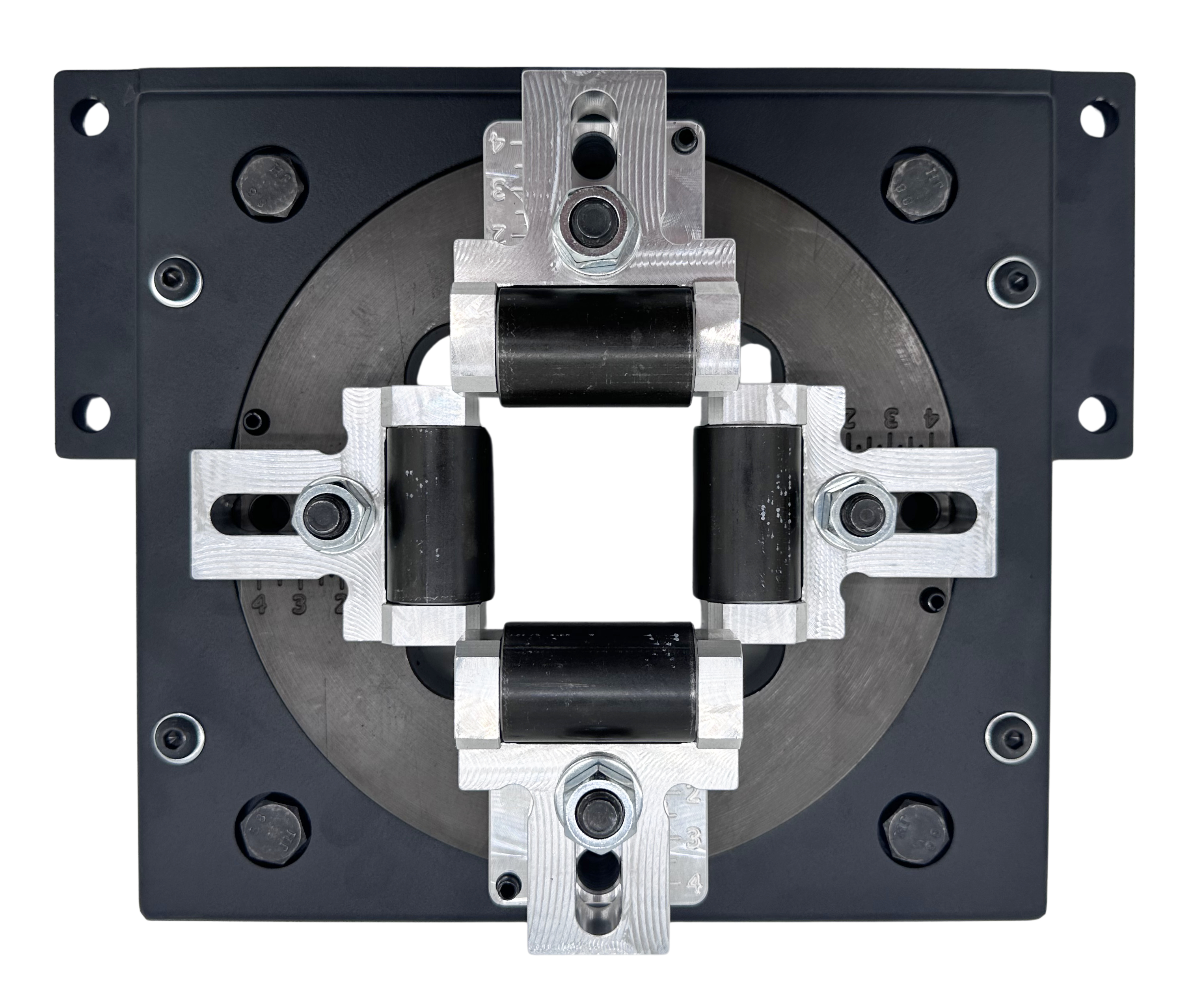

Square Stabilizer Frame Assembly

Square Stabilizer Frame Assembly

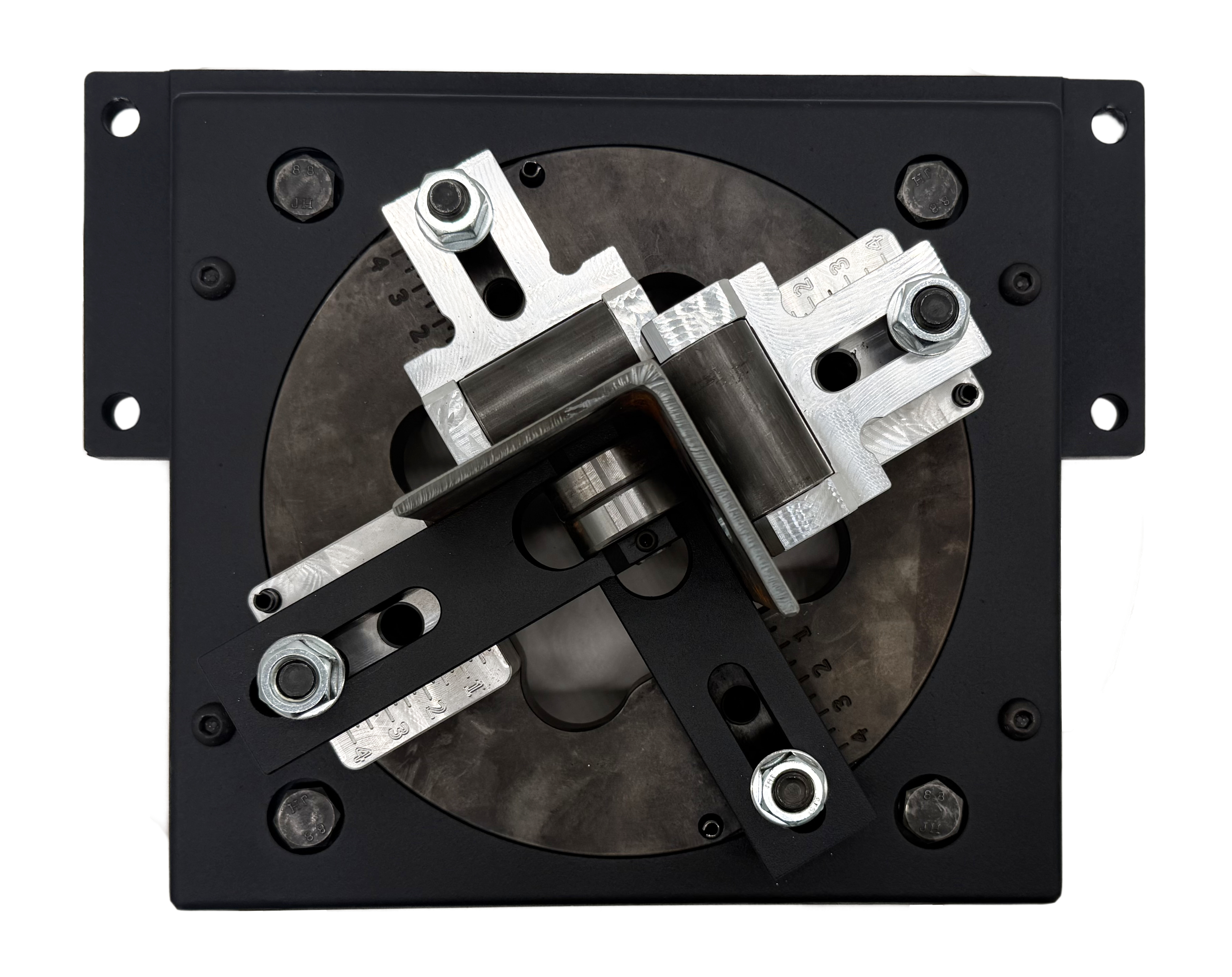

Angle Iron Configuration

Angle Iron Configuration

Dual Configuration for Angle Iron

The stabilizer includes special adapter rollers for cutting angle iron. These inside rollers support the angle iron from within, while the standard rollers support the outside faces.

This configuration prevents edge wear on the rollers and provides superior stability compared to supporting angle iron on its edges.

Quick Changeover

The Square Stabilizer shares the same center height as the Round Tube Stabilizer, allowing you to swap between the two without readjusting the chuck position. An adjustable bump stop on the stabilizer ensures consistent positioning every time it's installed.

Note: For precise orientation of square and rectangular tubing, use the jig plate in conjunction with the stabilizer. The jig plate ensures the workpiece remains perfectly square throughout rotation, which is especially important for drilling operations.

When to Use the Square Stabilizer

  • Cutting square or rectangular tubing up to 4" × 4"
  • Cutting angle iron up to 4" × 4"
  • High-volume production of short parts
  • Applications requiring frequent size changes (gauge system speeds setup)
  • Projects combining plasma cutting and drilling operations

Image Gallery

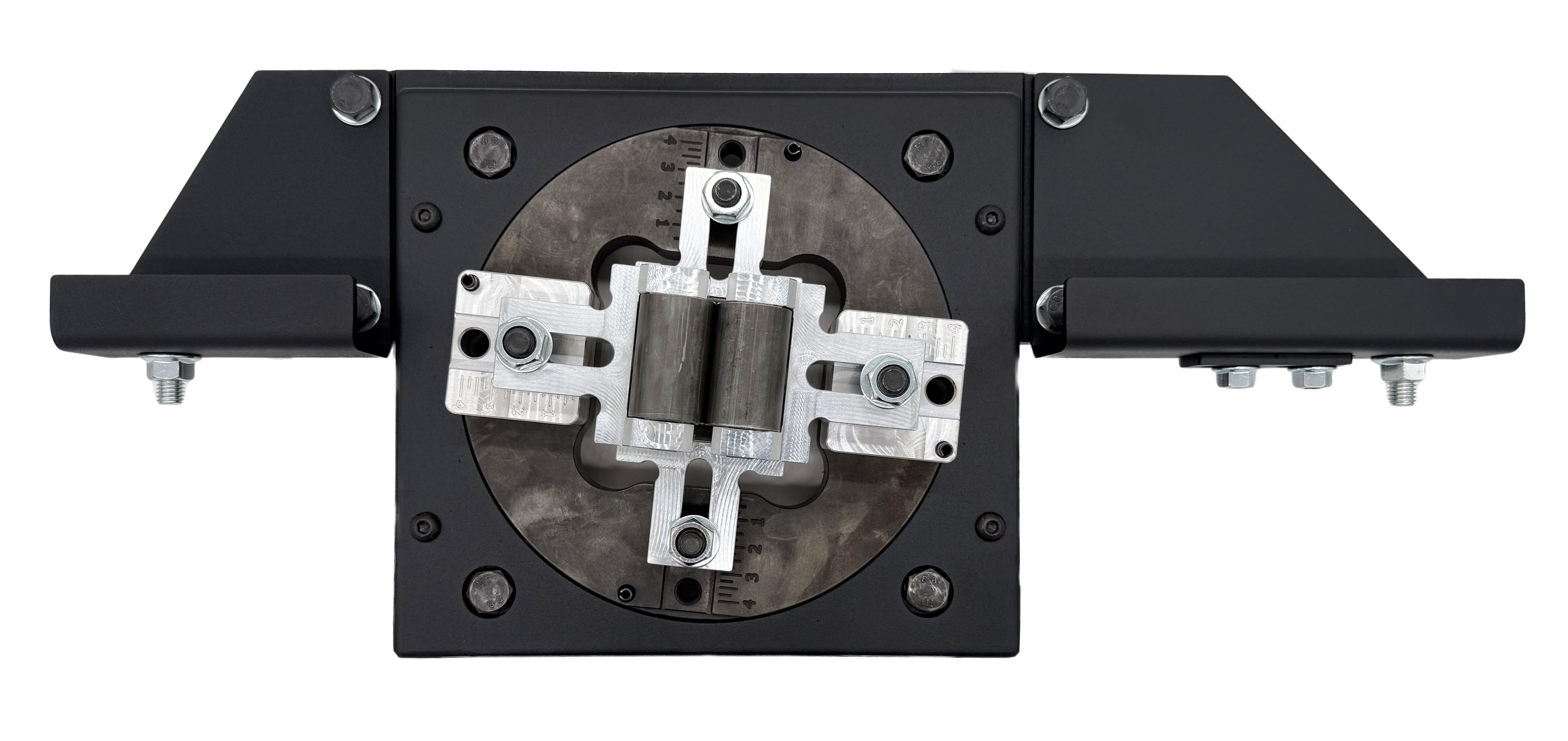

XR6 Square Stabilizer

XR6 Square Stabilizer

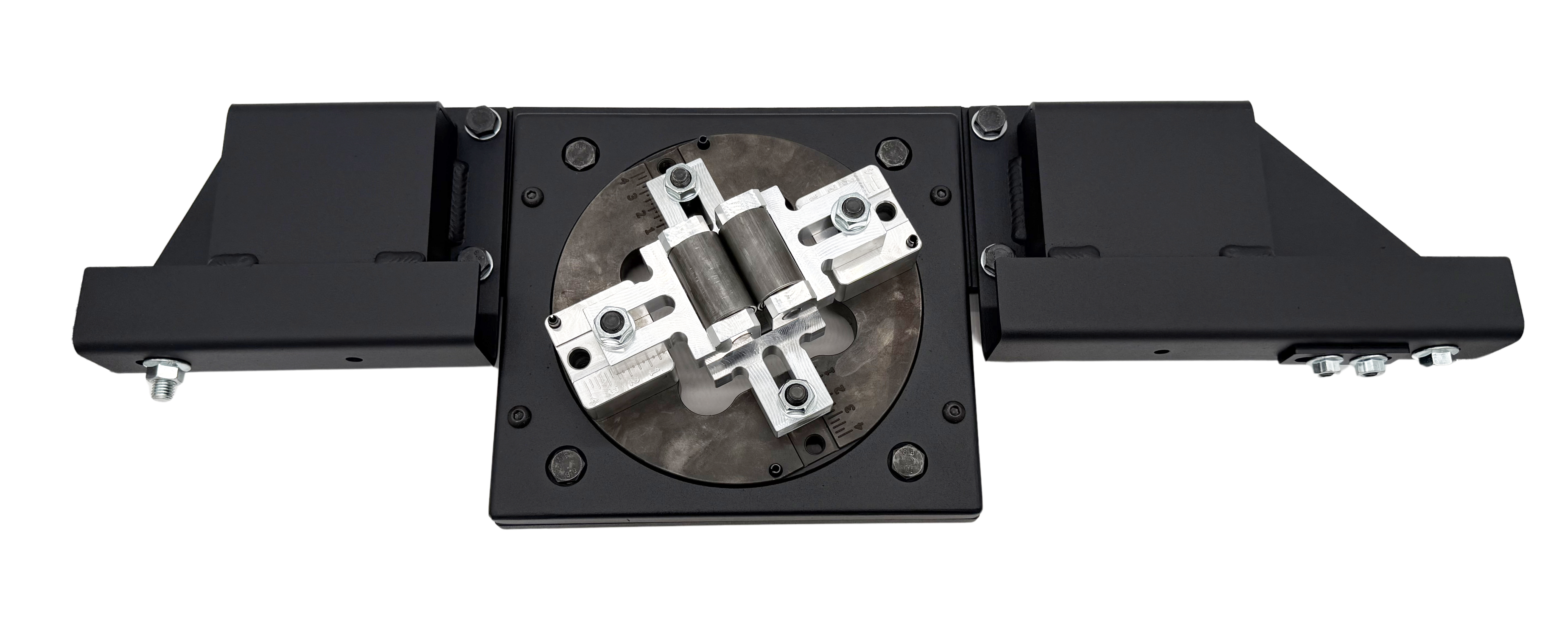

XR12 Square Stabilizer

XR12 Square Stabilizer

Questions About the Square Stabilizer?

Our team can help confirm fitment and the best setup for your XR6 or XR12.

Contact Sales
