MP Rotary Side Attachment

Previous productMAD Multiplatform CNC Table

Next productRotary Tube Attachment for ...

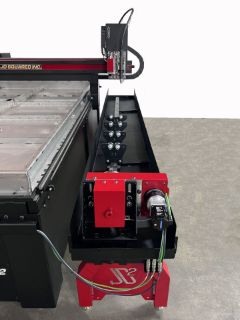

Picture of MP Rotary Side Attachment

Picture of MP Rotary Side Attachment

Picture of MP Rotary Side Attachment

Picture of MP Rotary Side Attachment

Picture of MP Rotary Side Attachment

The MP Rotary Side Attachment adds versatility to the MP Cutting Table Series by allowing the capability to cut and mark round and square material.

SKU: 107004

Manufacturer: JD Squared, Inc.

$11,900.00

MP Rotary Side Attachment Specificiations

Requirements	Requires the purchase of Multiplatform Cutting Table with Extended Gantry option.
Available Lengths	5', 8', and 10'
Tooling Included	Roller Stabilizer Kit to cut or mark different size round pipe or tubing.
Maximum Outside Diameter Size Capacity	6" schedule 40 Pipe, 6" Square Tubing, 5" Channel, and 5" Angle Iron
Motor	Brushless Servo Motors to rotate chuck
Machine Power Requirements	190-240VAC, 1PH with Neutral, 50/60Hz, 30A. Machine only. Optional automatic router control increases required amperage to 40A.
Plasma Compatibility	The MP Rotary Side Attachment requires a machine controllable plasma power unit, which is basically a way to turn the torch on and off automatically. A Begin Traverse, also known as Arc Okay, signal is accepted but not required for operation. If you're not sure if your existing plasma power supply is compatible, contact a sales representative and we'll look into it.
Shipping	These CNC rotary side attachments arrive assembled and require the end user to level and hook utilities up to the machine.

Overview
Contact Us

MP Rotary Side Attachment Specificiations

Requirements	Requires the purchase of Multiplatform Cutting Table with Extended Gantry option.
Available Lengths	5', 8', and 10'
Tooling Included	Roller Stabilizer Kit to cut or mark different size round pipe or tubing.
Maximum Outside Diameter Size Capacity	6" schedule 40 Pipe, 6" Square Tubing, 5" Channel, and 5" Angle Iron
Motor	Brushless Servo Motors to rotate chuck
Machine Power Requirements	190-240VAC, 1PH with Neutral, 50/60Hz, 30A. Machine only. Optional automatic router control increases required amperage to 40A.
Plasma Compatibility	The MP Rotary Side Attachment requires a machine controllable plasma power unit, which is basically a way to turn the torch on and off automatically. A Begin Traverse, also known as Arc Okay, signal is accepted but not required for operation. If you're not sure if your existing plasma power supply is compatible, contact a sales representative and we'll look into it.
Shipping	These CNC rotary side attachments arrive assembled and require the end user to level and hook utilities up to the machine.
