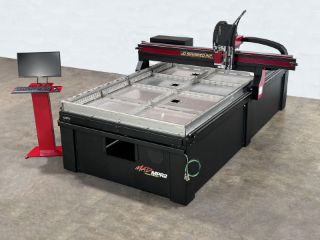

JD Squared continues their mission to provide the most robust equipment at an affordable price by introducing the MAD MP Series CNC plasma cutting and wood routing table. This new line of multiplatform tables gives the customer versatility to change between different types of tables, at an affordable price.

Manufacturer: JD Squared, Inc.

MAD MP CNC Table Specifications Summary

Available Table Sizes4' x 4' / 4' x 6' / 4' x 8' / 4' x 10' / 5' x 8' / 5' x 10'
Maximum plate thickness2"
X Axis Travel (Standard Gantry Version)4' x 4' - 58.75" (1492)
4' x 6' - 58.75" (1492)
4' x 8' - 58.75" (1492)
4' x 10' - 58.75" (1492)
5' x 8' - 70.75" (1797)
5' x 10' - 70.75" (1797)
X Axis Travel (Extended Gantry Version)4' x 4' - 70.75" (1797)
4' x 6' - 70.75" (1797)
4' x 8' - 70.75" (1797)
4' x 10' - 70.75" (1797)
5' x 8' - 82.75" (2102)
5' x 10' - 82.75" (2102)
Y Axis Travel (Standard & Extended Gantry Version)4' x 4' - 52.5" (1333)
4' x 6' - 76.5" (1943)
4' x 8' - 100.5" (2553)
4' x 10' - 124.5" (3162)
5' x 8' - 100.5" (2553)
5' x 10' - 124.5" (3162)
Z Axis Travel6"
Cutting Clearance Around PlateX Axis 1.75" (44mm)
Y Axis 2" (51mm)
Rapid Speeds1200 IPM
MotorsBrushless servo on all axes
Machine Power Requirements190-240VAC, 1PH with Neutral, 50/60Hz, 30A. Machine only. Optional automatic router control increases required amperage to 40A.
Plasma CompatibilityThe MAD MP Series requires a machine controllable plasma power unit, which is basically a way to turn the torch on and off automatically. A Begin Traverse, also known as Arc Okay, signal is accepted but not required for operation. If you're not sure if your existing plasma power supply is compatible, contact a sales representative and we'll look into it.
Wood Router CompatibilityThe MAD MP Series requires a standard hand router. If the optional automatic router control is being used, the maximum allowable amperage for the router is 15A.
Table OptionsThe MAD MP Series can be supplied as an Air, Water, or Wood at an additional cost.
ShippingThese tables arrive partially assembled and require the end user to assemble the frame. This allows us to ship in a smaller footprint to save you on freight costs.

Why Water Table?

PVD Water Table

Advantages

  • Most cost effective way to capture most (but not all) fumes and slag.
  • Minor cooling effect on material being cut if slats adjusted close to water level.

Disadvantages

  • Messy. Really messy. No seriously, they make a mess.
  • Steel sheets should be removed and dried after cutting to prevent corrosion. Additives to the table, such as Pico Quench Guard can help reduce corrosion and organics growing in the table.
  • Shallower bed depth limits plasma unit power to 125A and below. This limits the operator to 1" mild steel and thinner.

Why Air Table?

Mad Air Table

Advantages

  • When matched with a suitably sized air handler, excess smoke and fumes are captured more efficiently.
  • Extra bed clearance allows for the largest plasma units, up to 400A, and 1.5" mild steel plate thicknesses.

Disadvantages

  • Cost of an air handler. Without an air handler, a large amount of smoke and fumes are produced.
  • Since there is no cutting fluid, no cooling effect on thin gauge material.

Why Wood Router Table?

PVD Wood Router Table

Advantages

  • Allows level installation of a spoil board.

Disadvantages

  • When in the wood router configuration it's not ideal to plasma cut.

A Solid Foundation

Big machine features, small machine price.

The MAD MP Series CNC Tables are configurable to use either an air table, water table, or wood routing table. All share tough design features detailed by Bob in this introduction video.

Precision Machined Frame.

All steel construction has been precision machined to guarantee parallelism of the V-Groove supporting the alloy steel rail, and the 3/4" ground facing gear rack. The frame sides are keyed to make assembly a breeze.

V-Groove photo

Optional Extended Gantry

The extended gantry option allows the head to extend past the edge of the standard table to cut or route material that would not normally fit on the table. For example, cutting into square tubing using the rotary tube attachment for support.

Exended Gantry

Flexible slat height.

Vertical adjusters raise the support slats for easy loading, or lower them for use with water.

Adjustable Slats Air Adjustable Slats Water

Choose your curve.

Selectable slat curvature. Choose straight to easily slide material onto the table, or pick Half Arc or Full Arc to support small parts and lighter material.

Straight slats photo

The X and Z Axes

Universal. Ready for plasma.

The face plate of the X-Axis Carriage is universal to accept many types of tools. By default, it is configured with two magnetic docking stations, and a Z-Axis unit plasma ready.

X carriage plate photo

Z Axis - Protection built in.

The Z-Axis rides on a 25mm linear guide behind protective covers. It includes magnetic torch break-away with automated sensing, and dual probing methods: ohmic contact, and floating head for when electrical contact cannot be sensed.

Z axis switch

Brushless servo motors. Everywhere.

All axes are driven using high quality brushless servo motors to get the speed we desire: 1200 I.P.M. rapids. Application specific motor power supplies keep the machine running all day.

Motor photo

Hardened machine control.

Custom robust control electronics are reinforced, and isolated to protect sensitive circuits from damaging currents. Since we build it, obsolescence isn't a problem.

Control photo

Automatic Torch Height Control.

Yes, it's included. The custom ATHC is capable of measuring a divided feedback voltage provided by the most popular plasma power units.

User Interface Computer.

The MAD MP CNC tables does include a computer stand, but the computer is required to be purchased by the end user. Either supply your own PC or purchase an industrial NUC PC from us.

PC photo

Constantly improving Machine Control Interface.

The latest version of our control software keeps improving. Easy to operate, easy to select cut settings, and easy to restart. The software automatically updates itself for bug fixes and select feature sets if connected to the internet. No subscription required, included for free.

Software Screenshot

Configured to Your Needs.

The MP Series is designed for configuration. Available Options Include:.

  • Standard or Extended Gantry
  • Starting Table Type - Choose between Air and Wood Routing or Select Water for an additional cost.
  • The Air configuration is upgradable with tray and deflector Options.
  • Purchase one of two router attachment sizes to complete the Wood Router configuration.
  • The Water Table comes in powder coated steel or stainless steel.
  • An available water sump system allows you to raise and lower the water level for cutting, part retrieval and cleaning.
  • Compatible with the XL Marking System for drawing or engraving.

Additional Videos

Checkout more videos on our YouTube channel

MAD MP CNC Table Specifications Summary

Available Table Sizes4' x 4' / 4' x 6' / 4' x 8' / 4' x 10' / 5' x 8' / 5' x 10'
Maximum plate thickness2"
X Axis Travel (Standard Gantry Version)4' x 4' - 58.75" (1492)
4' x 6' - 58.75" (1492)
4' x 8' - 58.75" (1492)
4' x 10' - 58.75" (1492)
5' x 8' - 70.75" (1797)
5' x 10' - 70.75" (1797)
X Axis Travel (Extended Gantry Version)4' x 4' - 70.75" (1797)
4' x 6' - 70.75" (1797)
4' x 8' - 70.75" (1797)
4' x 10' - 70.75" (1797)
5' x 8' - 82.75" (2102)
5' x 10' - 82.75" (2102)
Y Axis Travel (Standard & Extended Gantry Version)4' x 4' - 52.5" (1333)
4' x 6' - 76.5" (1943)
4' x 8' - 100.5" (2553)
4' x 10' - 124.5" (3162)
5' x 8' - 100.5" (2553)
5' x 10' - 124.5" (3162)
Z Axis Travel6"
Cutting Clearance Around PlateX Axis 1.75" (44mm)
Y Axis 2" (51mm)
Rapid Speeds1200 IPM
MotorsBrushless servo on all axes
Machine Power Requirements190-240VAC, 1PH with Neutral, 50/60Hz, 30A. Machine only. Optional automatic router control increases required amperage to 40A.
Plasma CompatibilityThe MAD MP Series requires a machine controllable plasma power unit, which is basically a way to turn the torch on and off automatically. A Begin Traverse, also known as Arc Okay, signal is accepted but not required for operation. If you're not sure if your existing plasma power supply is compatible, contact a sales representative and we'll look into it.
Wood Router CompatibilityThe MAD MP Series requires a standard hand router. If the optional automatic router control is being used, the maximum allowable amperage for the router is 15A.
Table OptionsThe MAD MP Series can be supplied as an Air, Water, or Wood at an additional cost.
ShippingThese tables arrive partially assembled and require the end user to assemble the frame. This allows us to ship in a smaller footprint to save you on freight costs.

Why Water Table?

PVD Water Table

Advantages

  • Most cost effective way to capture most (but not all) fumes and slag.
  • Minor cooling effect on material being cut if slats adjusted close to water level.

Disadvantages

  • Messy. Really messy. No seriously, they make a mess.
  • Steel sheets should be removed and dried after cutting to prevent corrosion. Additives to the table, such as Pico Quench Guard can help reduce corrosion and organics growing in the table.
  • Shallower bed depth limits plasma unit power to 125A and below. This limits the operator to 1" mild steel and thinner.

Why Air Table?

Mad Air Table

Advantages

  • When matched with a suitably sized air handler, excess smoke and fumes are captured more efficiently.
  • Extra bed clearance allows for the largest plasma units, up to 400A, and 1.5" mild steel plate thicknesses.

Disadvantages

  • Cost of an air handler. Without an air handler, a large amount of smoke and fumes are produced.
  • Since there is no cutting fluid, no cooling effect on thin gauge material.

Why Wood Router Table?

PVD Wood Router Table

Advantages

  • Allows level installation of a spoil board.

Disadvantages

  • When in the wood router configuration it's not ideal to plasma cut.

A Solid Foundation

Big machine features, small machine price.

The MAD MP Series CNC Tables are configurable to use either an air table, water table, or wood routing table. All share tough design features detailed by Bob in this introduction video.

Precision Machined Frame.

All steel construction has been precision machined to guarantee parallelism of the V-Groove supporting the alloy steel rail, and the 3/4" ground facing gear rack. The frame sides are keyed to make assembly a breeze.

V-Groove photo

Optional Extended Gantry

The extended gantry option allows the head to extend past the edge of the standard table to cut or route material that would not normally fit on the table. For example, cutting into square tubing using the rotary tube attachment for support.

Exended Gantry

Flexible slat height.

Vertical adjusters raise the support slats for easy loading, or lower them for use with water.

Adjustable Slats Air Adjustable Slats Water

Choose your curve.

Selectable slat curvature. Choose straight to easily slide material onto the table, or pick Half Arc or Full Arc to support small parts and lighter material.

Straight slats photo

The X and Z Axes

Universal. Ready for plasma.

The face plate of the X-Axis Carriage is universal to accept many types of tools. By default, it is configured with two magnetic docking stations, and a Z-Axis unit plasma ready.

X carriage plate photo

Z Axis - Protection built in.

The Z-Axis rides on a 25mm linear guide behind protective covers. It includes magnetic torch break-away with automated sensing, and dual probing methods: ohmic contact, and floating head for when electrical contact cannot be sensed.

Z axis switch

Brushless servo motors. Everywhere.

All axes are driven using high quality brushless servo motors to get the speed we desire: 1200 I.P.M. rapids. Application specific motor power supplies keep the machine running all day.

Motor photo

Hardened machine control.

Custom robust control electronics are reinforced, and isolated to protect sensitive circuits from damaging currents. Since we build it, obsolescence isn't a problem.

Control photo

Automatic Torch Height Control.

Yes, it's included. The custom ATHC is capable of measuring a divided feedback voltage provided by the most popular plasma power units.

User Interface Computer.

The MAD MP CNC tables does include a computer stand, but the computer is required to be purchased by the end user. Either supply your own PC or purchase an industrial NUC PC from us.

PC photo

Constantly improving Machine Control Interface.

The latest version of our control software keeps improving. Easy to operate, easy to select cut settings, and easy to restart. The software automatically updates itself for bug fixes and select feature sets if connected to the internet. No subscription required, included for free.

Software Screenshot

Configured to Your Needs.

The MP Series is designed for configuration. Available Options Include:.

  • Standard or Extended Gantry
  • Starting Table Type - Choose between Air and Wood Routing or Select Water for an additional cost.
  • The Air configuration is upgradable with tray and deflector Options.
  • Purchase one of two router attachment sizes to complete the Wood Router configuration.
  • The Water Table comes in powder coated steel or stainless steel.
  • An available water sump system allows you to raise and lower the water level for cutting, part retrieval and cleaning.
  • Compatible with the XL Marking System for drawing or engraving.

Additional Videos

Checkout more videos on our YouTube channel

MAD MP CNC Table Specifications

Designed PurposeMulti-Platform Capability (Plasma, Router, Sheet Cutter, Vinyl Cutting, Large Format Drawing)
Heavy Steel Frame ConstructionYes
Max Thickness Capacity for Steel Plate2"
CNC Machined Y Axis RailsYes
CNC Machined X Axis RailsYes
Plasma Dust Tolerant Round RailsYes
Heavy Duty X & Y Gear Racks (.75" Face / 16P)Yes
CNC Machined Gantry (X Axis)Yes
Optional Extended GantryYes
Floating Head on Z AxisYes
Magnetic Break Away Torch MountYes
Z Axis Linear Guide (Enclosed)Yes
All Brushless Servo MotorsYes
Z Axis MotorNEMA 23
X Axis Motor & Precision Gear BoxNEMA 34
Y Axis Motor & Precision Gear BoxNEMA 34
Z Axis DrivePrecision Acme Screw
X Axis DriveNEMA 34 Precision Gear Head
Y Axis DriveDual Precision HTD Drive Belts
Spur Gear Pitch Diameters1.5"
Igus High Speed Cable CarriersYes
Igus High Quality Noise Rejecting Shielded WiringYes
Integrated Grounding Bar for Noise RejectionYes
JD2 Manufactured Motion Control Computer PLCYes
PC Computer Included In Base PriceNo
Computer Stand IncludedYes
JD2 Produced Motion Control SoftwareYes
Free Control Software Updates for LifeYes
CAM Software IncludedYes
Must be Shipped Completely Assembled?No
Relative Freight CostReasonably Low

Options Available

Extended Over Hanging GantryYes
Wood Router Mounting AdapterYes
Precision Marker & Air Scribe AttachmentYes
Air Bed Table (For Plasma, Oxy Fuel Torches)Yes
Router Bed Table (Wood Routing, Etc.)Yes
Water Bed TableYes
Adjustable Water Level System (Requires Water Bed)Yes

MAD MP Price List

Platform Sizes Available4' x 4' - $13,900
4' x 6' - $15,240
4' x 8' - $16,740
4' x 10' - $18,990
5' x 8' - $18,740
5' x 10' - $19,990
Platform Sizes with Extended Gantry (Decided at Time of Purchase)4' x 4' - $14,900
4' x 6' - $16,190
4' x 8' - $17,690
4' x 10' - $19,940
5' x 8' - $19,690
5' x 10' - $20,940
Bed Option PricesAir, Wood, or Water Bed Additional Cost

Air Bed Options

Air Bed (Add to Platform Price if Ordered Separately)4' x 4' - $950
4' x 6' - $1,000
4' x 8' - $1,400
4' x 10' - $1,600
5' x 8' - $1,600
5' x 10' - $1,650
Air Bed Deflectors4' x 4' - $750
4' x 6' - $850
4' x 8' - $1,000
4' x 10' - $1,300
5' x 8' - $1,300
5' x 10' - $1,800
Air Disposal Trays4' x 4' - $450 per Tray
4' x 6' - $450 per Tray
4' x 8' - $450 per Tray
4' x 10' - $450 per Tray
5' x 8' - $450 per Tray
5' x 10' - $450 per Tray

Water Bed Options

Water Bed (Powdercoated Steel / Add to Water Bed Price)4' x 4' - $1,300
4' x 6' - $1,800
4' x 8' - $2,000
4' x 10' - $2,350
5' x 8' - $2,350
5' x 10' - $2,450
Water Bed (Stainless Steel)4' x 4' - $2,000
4' x 6' - $3,000
4' x 8' - $3,800
4' x 10' - $4,250
5' x 8' - $4,250
5' x 10' - $4,400
Adjustable Water Table with Sump System (Powdercoated Steel / Add to Water Bed Price)4' x 4' - $1,300
4' x 6' - $1,500
4' x 8' - $1,950
4' x 10' - $2,350
5' x 8' - $2,350
5' x 10' - $2,750

Wood Router Bed Options

Wood Router Bed (Add to Platform Price if Ordered Separately)4' x 4' - $500
4' x 6' - $650
4' x 8' - $850
4' x 10' - $900
5' x 8' - $900
5' x 10' - $1,000
Wood Router Attachment Small$120
Wood Router Attachment Large$150

Attachments

XL Marking System$790
*
*
*
This product is sold out
