XR12 BLE - Beam Line Emulator

Previous productMaterial Stabilizers
Next productRoller Plate Assembly

Picture of XR12 BLE - Beam Line Emulator
Picture of XR12 BLE - Beam Line Emulator
Picture of XR12 BLE - Beam Line Emulator
Beamline Emulator Attachment
XR12 BLE — WCA Axis (5-Axis Full Package)
$29,700
XR12 BLE — WA Axis
$19,800
XR12 BLE — WC Axis
$19,800
Contact Sales or call (423) 979-0309 to order.
SKU: 107310
Manufacturer: JD Squared, Inc.
$29,700.00

XR12 Exclusive

BLE — Beam Line Emulator

5-Axis System for Structural Steel Processing & Pipe Beveling

Beamline-style structural processing — without the beamline footprint or price tag. Code generated by GCmaker CAD/CAM Software.

What Is the BLE?

The Beam Line Emulator (BLE) is a 5-axis tilt head attachment designed exclusively for the XR12 CNC Rotary Cutter. It brings beamline-class capabilities — coping, beveling, drilling, layout marking, and complex end-prep — to a single machine that fits in your existing shop footprint.

Traditional beam lines are purpose-built, multi-station systems that can cost hundreds of thousands of dollars and consume significant floor space. The BLE delivers the same core workflow on your XR12 — at a fraction of the cost, with zero additional footprint.

Paired with JD2's GCmaker software, the BLE imports industry-standard NC1, STEP, IGES, and DXF files directly from your detailing software, automatically generating toolpaths for structural steel profiles. No manual layout. No guesswork.

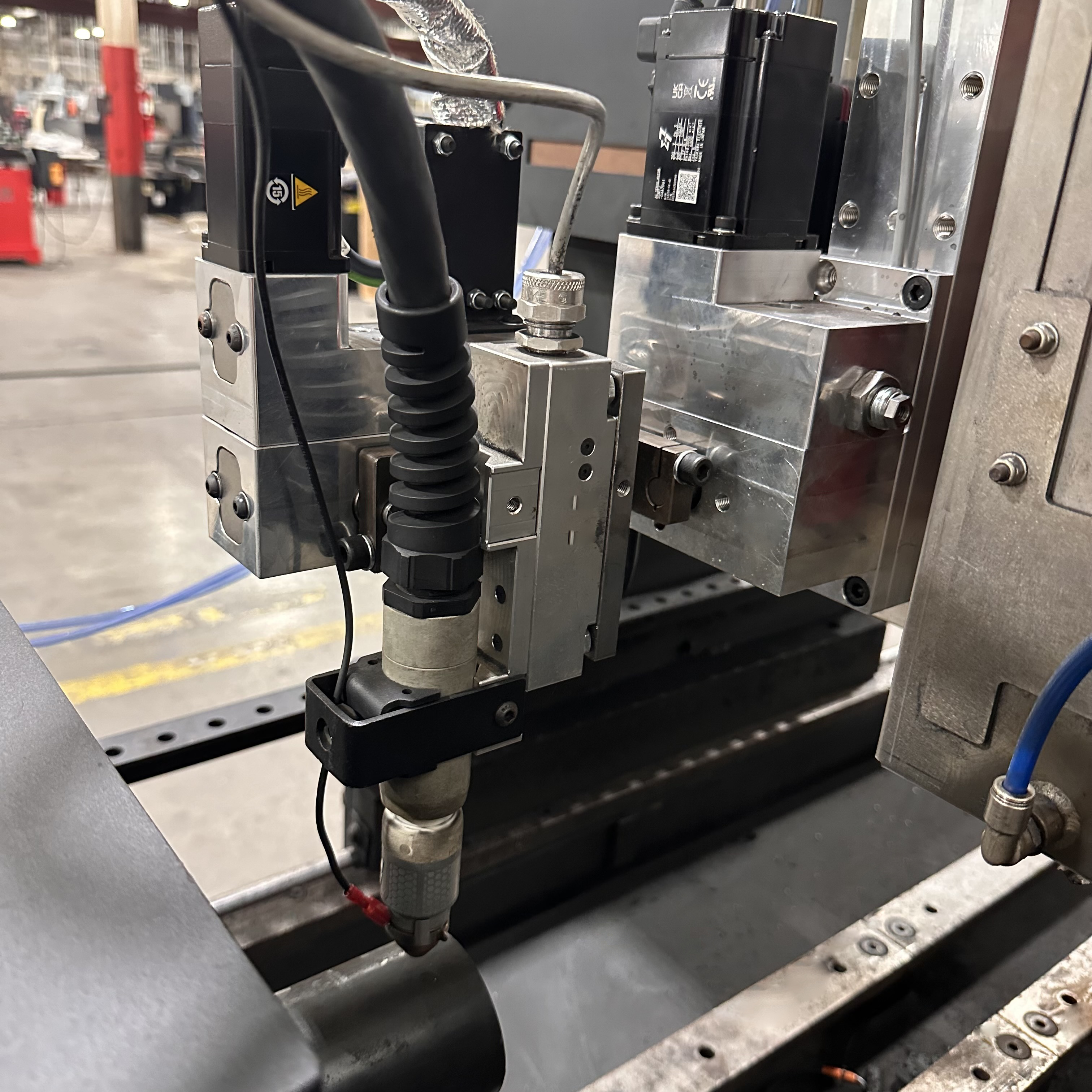

XR12 BLE Tilt Head Beveling Pipe

Why the BLE Is a Game Changer

⏱️

Eliminate Manual Layout

No more tape measures, soapstone, and hand-drawn cope lines. GCmaker imports your NC1 files and generates toolpaths automatically — reducing layout time to zero.

🔩

Reduce Handling & Setups

Cut, cope, bevel, drill, and mark — all on one machine. Stop moving material between stations. Fewer touches means fewer bottlenecks and faster throughput.

📐

Repeatable Accuracy

CNC-controlled 5-axis motion delivers consistent, accurate cuts every time. Reduce rework, improve fit-up quality, and ship with confidence.

Key Details

Specification Detail
Compatibility XR12 CNC Rotary Cutter Only
System Type 5-Axis Tilt Head
Motors Yaskawa EtherCAT servo motors
Primary Function Structural steel cutting, coping, beveling, drilling, and marking
Software GCmaker CAD/CAM — imports NC1, STEP, IGES, and DXF files from detailing software
Supported Profiles I-Beam, C-Channel, Angle Iron, Round, and Flat
Beveling Full bevel capability on pipe and structural material up to 45°
Made In USA — Designed and manufactured by JD Squared, Inc.

5-Axis Tilt Head — Access Every Angle

The BLE's 5-axis tilt head gives the torch full angular access to structural profiles. This means complex copes, compound bevels, and angled end-prep that would normally require multiple setups on different machines — done in a single pass on the XR12.

The tilt head is the key to unlocking beamline-style operations. It enables the torch to follow the geometry of I-beams, channels, and angle — reaching flanges and webs that a standard vertical torch simply cannot.

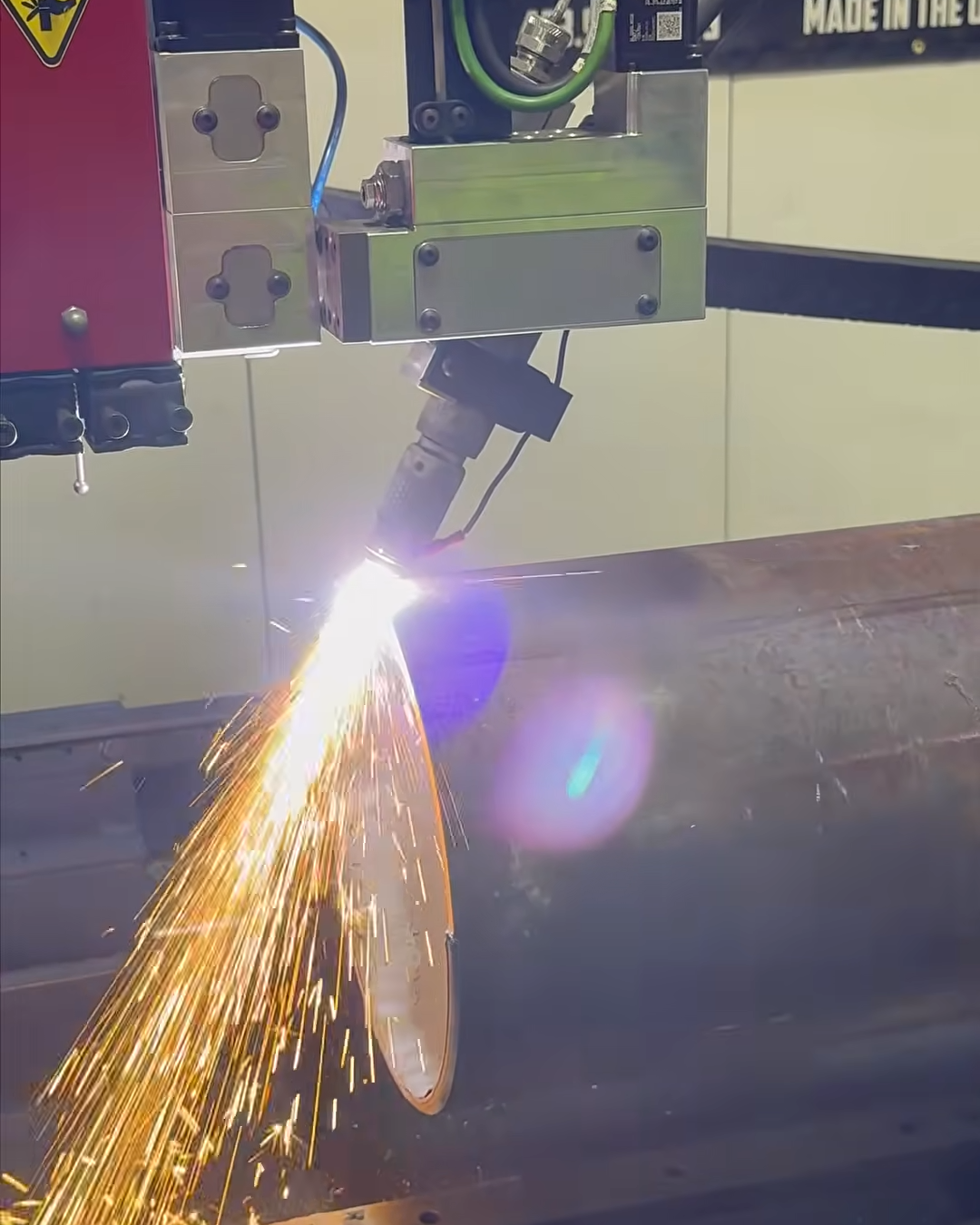

XR12 BLE Tilt Head Beveling Pipe

GCmaker Software — From NC1 to Cut Parts

GCmaker is JD2's purpose-built software for the BLE attachment. It imports industry-standard NC1 files — the same files your steel detailer already produces — and automatically generates optimized toolpaths for every operation: cuts, copes, bolt holes, layout marks, and bevels.

No manual programming. No G-code editing. Import the file, verify the preview, and run. GCmaker handles the translation between your detailing model and the XR12's motion system.

Import once. Cut accurately. Every time.

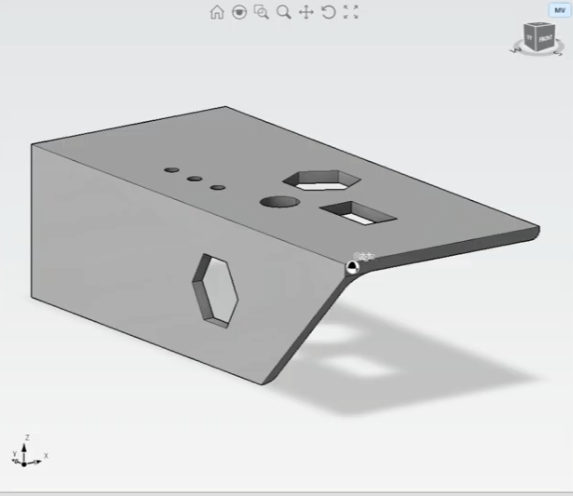

XR12 BLE Tilt Head Beveling Pipe





Ready to Add Beamline Capability to Your XR12?

Tell us about your application — we'll help confirm the BLE is the right fit for your shop and walk you through the details.

Contact Sales

XR12 Exclusive

BLE — Beam Line Emulator

5-Axis System for Structural Steel Processing & Pipe Beveling

Beamline-style structural processing — without the beamline footprint or price tag. Code generated by GCmaker CAD/CAM Software.

What Is the BLE?

The Beam Line Emulator (BLE) is a 5-axis tilt head attachment designed exclusively for the XR12 CNC Rotary Cutter. It brings beamline-class capabilities — coping, beveling, drilling, layout marking, and complex end-prep — to a single machine that fits in your existing shop footprint.

Traditional beam lines are purpose-built, multi-station systems that can cost hundreds of thousands of dollars and consume significant floor space. The BLE delivers the same core workflow on your XR12 — at a fraction of the cost, with zero additional footprint.

Paired with JD2's GCmaker software, the BLE imports industry-standard NC1, STEP, IGES, and DXF files directly from your detailing software, automatically generating toolpaths for structural steel profiles. No manual layout. No guesswork.

XR12 BLE Tilt Head Beveling Pipe

Why the BLE Is a Game Changer

⏱️

Eliminate Manual Layout

No more tape measures, soapstone, and hand-drawn cope lines. GCmaker imports your NC1 files and generates toolpaths automatically — reducing layout time to zero.

🔩

Reduce Handling & Setups

Cut, cope, bevel, drill, and mark — all on one machine. Stop moving material between stations. Fewer touches means fewer bottlenecks and faster throughput.

📐

Repeatable Accuracy

CNC-controlled 5-axis motion delivers consistent, accurate cuts every time. Reduce rework, improve fit-up quality, and ship with confidence.

Key Details

Specification Detail
Compatibility XR12 CNC Rotary Cutter Only
System Type 5-Axis Tilt Head
Motors Yaskawa EtherCAT servo motors
Primary Function Structural steel cutting, coping, beveling, drilling, and marking
Software GCmaker CAD/CAM — imports NC1, STEP, IGES, and DXF files from detailing software
Supported Profiles I-Beam, C-Channel, Angle Iron, Round, and Flat
Beveling Full bevel capability on pipe and structural material up to 45°
Made In USA — Designed and manufactured by JD Squared, Inc.

5-Axis Tilt Head — Access Every Angle

The BLE's 5-axis tilt head gives the torch full angular access to structural profiles. This means complex copes, compound bevels, and angled end-prep that would normally require multiple setups on different machines — done in a single pass on the XR12.

The tilt head is the key to unlocking beamline-style operations. It enables the torch to follow the geometry of I-beams, channels, and angle — reaching flanges and webs that a standard vertical torch simply cannot.

XR12 BLE Tilt Head Beveling Pipe

GCmaker Software — From NC1 to Cut Parts

GCmaker is JD2's purpose-built software for the BLE attachment. It imports industry-standard NC1 files — the same files your steel detailer already produces — and automatically generates optimized toolpaths for every operation: cuts, copes, bolt holes, layout marks, and bevels.

No manual programming. No G-code editing. Import the file, verify the preview, and run. GCmaker handles the translation between your detailing model and the XR12's motion system.

Import once. Cut accurately. Every time.

XR12 BLE Tilt Head Beveling Pipe





Ready to Add Beamline Capability to Your XR12?

Tell us about your application — we'll help confirm the BLE is the right fit for your shop and walk you through the details.
