Notch Master Tube Notcher

Previous productTV-3 Tri-V Tube Notcher
Next productRV-3 Rotary V Tube Notcher

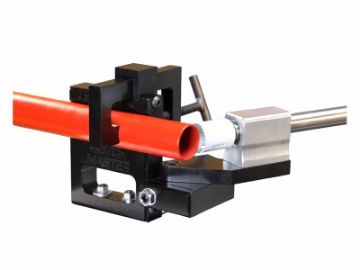

Notch Master Tubing Notcher Product Photo
Notch Master Tubing Notcher Product Photo
Notch Master Tubing Notcher No Tubing
Notch Master Angle Indicator
Notch Master Swivel Plate
Notch Master Tube Clamp
SKU: 101200
Manufacturer: JD Squared, Inc.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$295.00

Notch Master
Tube Notcher

Precision Notching Made Simple

Professional-grade tube notching for 3/4" to 3" OD tubing with angles up to 50°

All CNC Machined

Every component is precision CNC machined for accuracy and consistency. The heavy-duty 1-1/4" thick steel frame provides rock-solid stability for clean, repeatable notches every time.

Notch Master CNC Machined Steel Frame
Notch Master Bearing Block with Twin Needle Bearings

Precision Bearing Block

The most critical part of a hole saw style tube notcher. The Notch Master features a 1" stress proof alloy steel shaft riding in a rigid bearing block with twin needle bearings and separate grease seals for maximum rigidity and reliability.

Angle Cuts Up to 50°

Easily set your notch angle with the built-in angle indicator. Whether you need a straight notch or an angled joint up to 50°, the Notch Master handles it with precision.

Notch Master Angle Indicator
Notch Master 2-Axis Tube Clamp

2-Axis Adjustable Tube Clamp

The adjustable tube clamp securely holds your material in place. With 2-axis adjustment, you can offset the notch up to half the tube diameter for versatile joint configurations.

Easy to Use

The Notch Master is designed for simplicity and convenience:

• Easy mounting: Bolt or clamp it to a table, or simply clamp it in a vise

• Uses inexpensive bi-metal hole saws — no proprietary tooling required

• Requires an ordinary 1/2" hand drill — no special equipment needed

Specifications

Capacity

3/4" to 3" OD

Max Angle

50°

Frame Thickness

1-1/4"

Shaft

1" Alloy Steel

Questions?

Need help choosing the right notcher or have questions about the Notch Master?
Call us at 423-979-0309 or email us at sales@jd2.com. We're happy to help!
