The Powermax® family of products consists of 5 highly portable, professional grade air plasma systems. Built to withstand heavy duty use in demanding industrial environments, the systems are an ideal choice for hand or automated cutting and gouging of any electrically conductive metal. Purchase with the MAD, PVD MP, MAD MP, and MAD RC4 CNC Machines.
Manufacturer: Hypertherm
Call for pricing

Powermax Advantages

  • Best performance in its class
  • State-of-the-art consumable technology delivers faster speeds and better cut quality to help you get more done in less time
  • High portability, simple controls and a stable plasma arc make Powermax systems easy to operate, even for beginners.
  • Long consumable life and fast cut speeds lower your cutting and gouging costs

Powermax System Requirements

  • AC power source (fixed or generator)
  • Compressed air - shop air, portable air compressor, or bottled air (nitrogen is often used for stainless steel)
  • Safety equipment - including shaded glasses or face shield, gloves, protective clothing
  • Proper ventilation

Powermax Advantages

  • Best performance in its class
  • State-of-the-art consumable technology delivers faster speeds and better cut quality to help you get more done in less time
  • High portability, simple controls and a stable plasma arc make Powermax systems easy to operate, even for beginners.
  • Long consumable life and fast cut speeds lower your cutting and gouging costs

Powermax System Requirements

  • AC power source (fixed or generator)
  • Compressed air - shop air, portable air compressor, or bottled air (nitrogen is often used for stainless steel)
  • Safety equipment - including shaded glasses or face shield, gloves, protective clothing
  • Proper ventilation

Hypertherm Powermax 45XP

Handheld Cut CapacityRecommended 5/8" (16mm) and Severance 1-1/8" (29mm)
Mechanized Pierce Capacity1/2" (12mm)
Input Voltage at 50/60 HzCSA 200-240V, 1-PH or CSA 480V, 3PH
Duty Cycle at Full OutputCSA 50% 230-600V, 1-PH or CSA 50% 480V, 3-PH
GasAir or Nitrogen
Motor Generator Requirements for Full Arc Stretch at Full Output10kW

Hypertherm Powermax 65

Handheld Cut CapacityRecommended 3/4" (20mm) and Severance 1-1/4" (32mm)
Mechanized Pierce Capacity5/8" (16mm)
Input Voltage at 50/60 HzCSA 200-480V, 1-PH or CSA 200-600V, 3PH
Duty Cycle at Full OutputCSA 50% 230-600V, 1/3-PH
GasAir or Nitrogen
Motor Generator Requirements for Full Arc Stretch at Full Output15kW

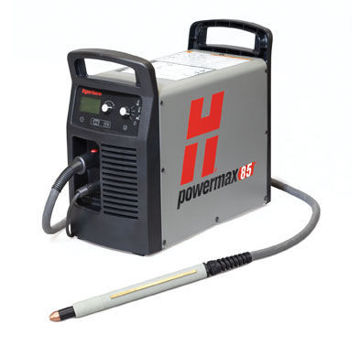

Hypertherm Powermax 85

Handheld Cut CapacityRecommended 1" (25mm) and Severance 1-1/2" (38mm)
Mechanized Pierce Capacity3/4" (20mm)
Input Voltage at 50/60 HzCSA 200-480V, 1-PH or CSA 200-600V , 1/3PH
Duty Cycle at Full OutputCSA 60% 230-600V, 3-PH
GasAir or Nitrogen
Motor Generator Requirements for Full Arc Stretch at Full Output20kW

Hypertherm Powermax 105

Handheld Cut CapacityRecommended 1-1/4" (32mm) and Severance 1-3/4" (44mm)
Mechanized Pierce Capacity7/8" (22mm)
Input Voltage at 50/60 HzCSA 200-600V, 3-PH
Duty Cycle at Full OutputCSA 80% 480-600V, 3-PH
GasAir or Nitrogen
Motor Generator Requirements for Full Arc Stretch at Full Output30kW

Hypertherm Powermax 125

Handheld Cut CapacityRecommended 1-1/2" (38mm) and Severance 2-1/4" (55mm)
Mechanized Pierce Capacity1" (25mm)
Input Voltage at 50/60 HzCSA 480V, 3-PH or CSA 600V, 3-PH
Duty Cycle at Full OutputCSA 100% 480/600V, 3-PH
GasAir or Nitrogen
Motor Generator Requirements for Full Arc Stretch at Full Output40kW
*
*
*
